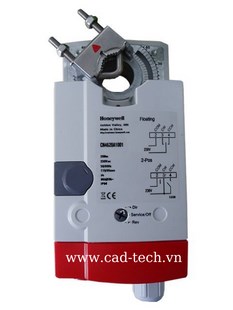

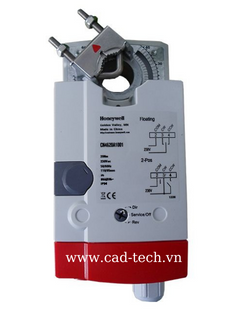

DAMPER ACTUATOR CN7510A2209
10Nm, 24Vac/Vdc, Modulating control, Non-Spring return, Voltage FeedbackSignal and with aux.Switch
- Supply voltage 24 Vac/dc -15%/+20%, 50/60 Hz
- Nominal voltage 24 Vac/dc, 50/60 Hz
- All values stated hereinafter apply to operation under nominal voltage conditions.
- Power consumption
- CN7505 5 VA / 2 W
- CN7510 5 VA / 2 W
- Control signal
- Modulating (0)2...10 Vdc
- Floating/2-Position 24 Vac/dc
- Ambient limits
- Ambient operating limits -5...+140 °F (-20...+60 °C)
- Ambient storage limits -22...+176 °F (-30...+80 °C)
- Relative humidity 5...95%, non-condensing
- Safety
- Protection standard IP54
- Protection class II as per EN 60730-1
- Overvoltage category II
- Lifetime
- Full strokes 60000
- Repositions 1.5 million
- Mounting
- Round damper shaft 3/8 in…5/8 in.
- Square damper shaft 1/4 in…1/2 in.; 45° steps
- Shaft length min. 1-5/8 in.
- End switches (when included)
- Rating Class II
- Triggering points 5° / 85°
- Torque rating 44 lb-in. (5Nm) / 88 lb-in. (10Nm)
- Rotation stroke 95° + 3°
- Weight (without cables) 1.0 lbs.
- Noise rating 35 dB(A) max. at 1 m
- Certification CE & UL
| Tiêu đề | Kích thước | Tải về |
|---|---|---|
| Datasheet CN75 Series | 0,35 MB | Tải về |
