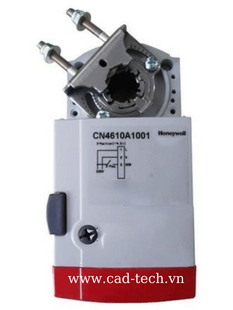

DAMPER ACTUATOR CN4610A1001

10Nm, 230Vac, floating control, non-spring return, no feedback and without aux. Switch

Tags: #CN4610A1001

Supply voltage
- CN6105/CN6110 24 Vac/dc -15%/+20%, 50/60 Hz
- CN4605/CN4610 230 Vac -15%/+20%, 50/60 Hz
Nominal voltage
- CN6105/CN6110 24 Vac/dc, 50/60 Hz
- CN4605/CN4610 230Vac, 50/60 Hz
All values stated hereinafter apply to operation undernominal voltage conditions.
Power consumption
- CN6105/CN6110 5 VA / 2 W
- CN4605 22 VA / 2 W at 50 Hz
- CN4610 25 VA / 2 W at 60 Hz
Ambient limits
- Ambient operating limits -5...+140 °F (20...+60 °C)
- Ambient storage limits -22...+176 °F (-30...+80 °C)
- Relative humidity 5...95%, non-condensing
Safety
- Protection standard IP54
- Protection class II as per EN 60730-1
- Overvoltage category II
Lifetime
- Full strokes 60000
- Repositions 1.5 million
Mounting
- Round damper shaft 3/8 in…5/8 in.
- Square damper shaft 1/4 in…1/2 in.; 45° steps
- Shaft length min. 1-5/8 in.
End switches (when included)
- Rating Class II
- Triggering points 5° / 85°
Torque rating 44 lb-in. (5Nm) / 88 lb-in. (10 Nm)
Runtime for 90°
- CN6105 90 sec (dc / 60 Hz ac)
- CN6110 90 sec (dc / 50 Hz ac)
- CN4605 65…110 s (60/50 Hz)
- CN4610 65…140 s (60/50 Hz)
Rotation stroke 95° +/- 3°
Weight (without cables) 1 lbs.
Noise rating
- 35 dB(A) max. at 1 m
- 40 dB(A) for 230 Vac at 65 sec runtime
Certification
- CN6105/CN6110 CE & UL
- CN4605/CN4610 CE
