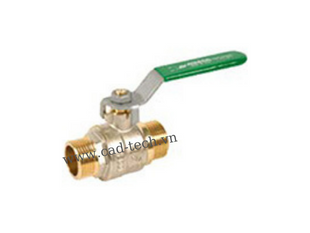

BALL VALVE MALE/MALE THREADED BS1169MML
Full bore BSP male ball valve/brass CW617N according to EN 12164/NF certified
- From DN3/8" to DN 2"
- Fabrication according to NF079
- Full bore
- Anti blow-out stem
- Solid ball
- Drilled ball ( to avoid water stagnation between ball and body ) up to DN 1“1/2
- PTFE G200 packing + O ring EPDM 4270 on stem
- Handle operating
- Handle green color RAL 6029
- Working temperature: - 5°C / +90°C
- Peak temperature : +110°C ( maximum 1 hour )
- Working pressure :
- 40 bar - from DN1/4“ to DN 3/4“
- 25 bar - from 1“ to 1“1/4
- 16 bar - from 1"1/2 to 2"
| Tiêu đề | Kích thước | Tải về |
|---|---|---|
| Datasheet BS1169MML | 0,07 MB | Tải về |
