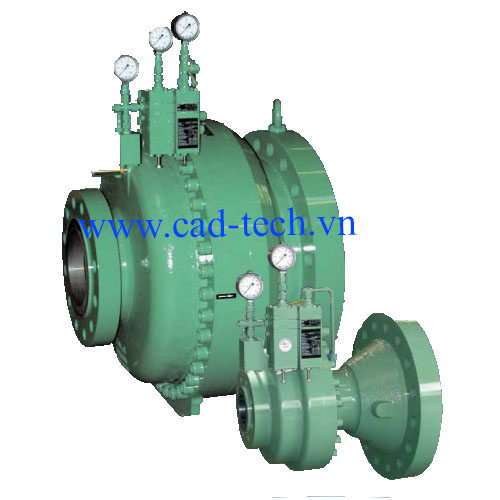

HON 512 Gas Regulator
Honeywell offers HON 512, a rugged gas pressure regulator with excellent regulating dynamics built to DIN EN 334 standards. It is ideal for non-aggressive gases in gas turbines, transfer stations in gas transport networks for power plants and industrial facilities.
Features include:
- Well suited for gas turbines due to excellent regulating dynamics
- Reverse flow protection as option
- Rugged and simple design
- High KG values of pipe sizes due to axial flow
- Also available with reduced KG values for best adaptation to operating conditions
- Can be supplied outlet DN = inlet DN or with noise-reducing outlet
- Suitable for complex pneumatic & electric automation systems
- Fail-close and fail-open function also available
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- SIL certified according to IEC61508
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Outlet pressure range Wd: 0.3 bar to 90 bar
- Minimum pressure drop: 1.5 bar, others on enquiry
- Class of lock-up pressure zone: SZ 2.5
- Connection:
- DIN flange PN 25, PN 40
- Flange Classes 150, 300 and 600 according to ANSI 16.5 with pipe sizes inlet
- DN 25, DN 50,DN 80, DN 100, DN 150, DN 200, DN 250, DN 300
- Flange Class 900 upon request
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
